P/N: 16110

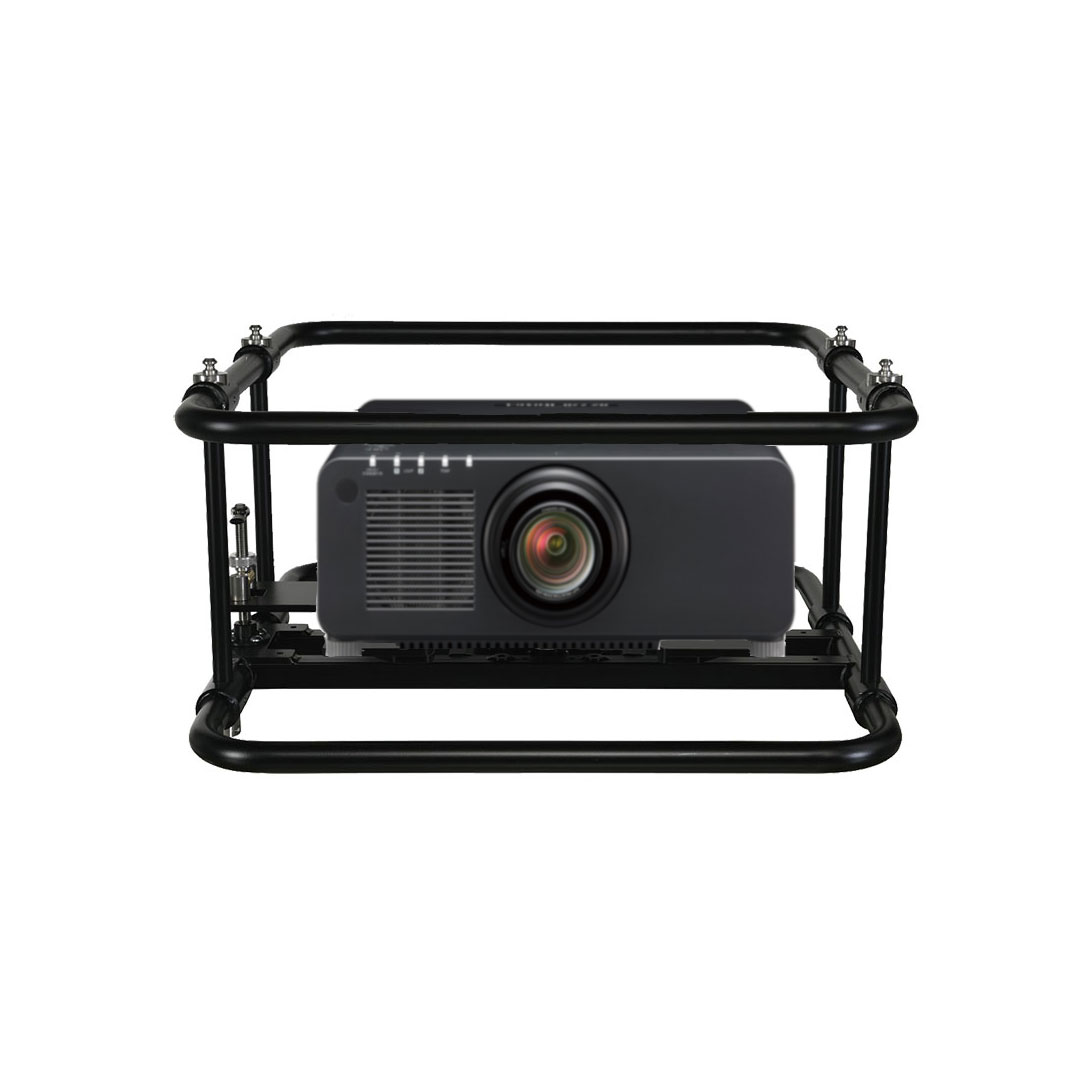

Microadjustable Rigging cage for videoprojector mounting
Robust, resistant, and engineered for video-projection. Thanks to its micro-adjustment capability on all three axes, utilizing keys and ratchet mechanisms, it provides optimal focus as well as centering of image.
*Compatible with these video projectors series:
Panasonic PT-RZ570
Panasonic PT-DW730
Panasonic PT-DW740
Panasonic PT-DW750
Panasonic PT-DZ770K
Panasonic PT-DZ780
Panasonic PT-DX800
Panasonic PT-DX810
Panasonic PT-DX820
Panasonic PT-RW620
Panasonic PT-RW630
Panasonic PT-RZ660
Panasonic PT-RZ670
Panasonic PT-RW730
Panasonic PT-RZ770
Panasonic PT-RZ780
Panasonic PT-RW930
Panasonic PT-RZ970
Panasonic PT-RW620
Panasonic PT-RZ120
Panasonic PT-DZ870K
Panasonic PT-DW830
Panasonic PT-DX100
Stacking
APPROVED FOR A MAXIMUM OF 3 STACKING CAGES
Maximum Ground Stack: 3 Frames
Maximum Suspended Stack: 2 Frames
Adjustment
4 points of adjustment
2 control the Roll and Pitch adjustments
1 handles position the height of the proyection
1 handle operates the Yaw adjustments.
Wheels handle
Ratchet handle
Features
3 mounting positions portrait, landacsape and floor
Extentio removeble bar
Clump to Truss: K-TILT
Clump to Chain: EYE BOLD
Swivel heads
Compatibility
With 3rd party stacking frame cage
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
